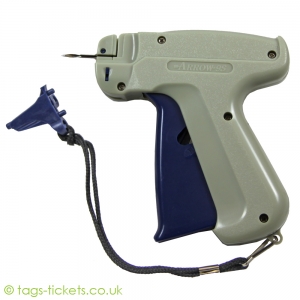

The Arrow CM-9S Premium Tagging and labelling gun is very simple to use and is one of the best tagging guns available.
Manufactured to a high standard, this tag gun is ergonomically designed for maximum comfort and is very lightweight, yet very robust.
The
Arrow CM-9S premium tagging gun is recommend by most users of tagging and
labelling supplies.
Ideal for use with standard, medium and heavy weight fabrics.
For
use with the RN1 tagging needles (1 included) and regular attachments.
• Efficient
• Economical
• Easy to use
OPERATING INSTRUCTIONS
Step
1. TO LOAD THE PINS
Insert
either end of the connecting bar in to the feed slot
Step
2. TO ATTACH THE TAG
Pierce
needle through hole in tag and then through fabric. Squeeze the trigger.
Step
3. TO RELEASE THE PINS
Depress the free lever and remove pins.
Step
4. TO REPLACE BLADE
Pull the blade out with the specially designed needle cap
Step
5. TO INTERCHANGE NEEDLE
Turn needle lock 180° towards the front and draw out the needle.
Step
6. TO CLAMP NEW NEEDLE
Place the needle and turn the needle lock 180° towards the rear.
ALWAYS KEEP THE NEEDLE GUARD ON THE NEEDLE WHEN THE GUN IS NOT IN USE
